Freight Seesaw
Download on the App Store Get it on Google Play

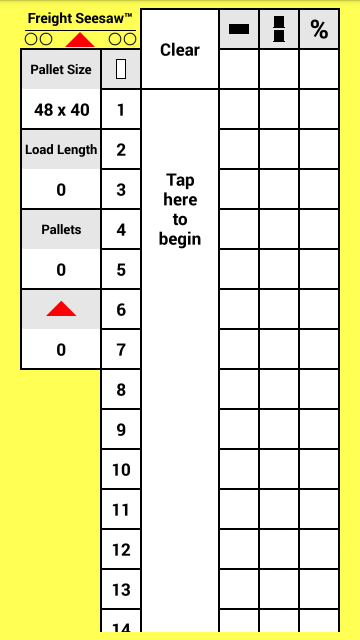

Freight Seesaw can accommodate up to twenty rows of pallets. Here is the opening screen:
screenshot 1
When no pallets are present, tapping inside the pallet column creates a pattern with every row straight-doubled (screen taps are highlighted in green):
screenshot 2

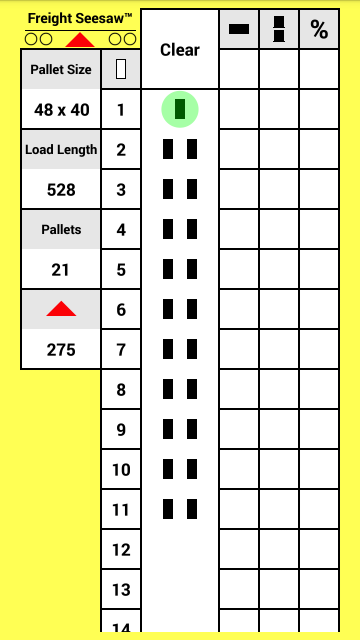

Tapping a doubled row singles it:
screenshot 3
Tapping a singled row doubles it:
screenshot 4

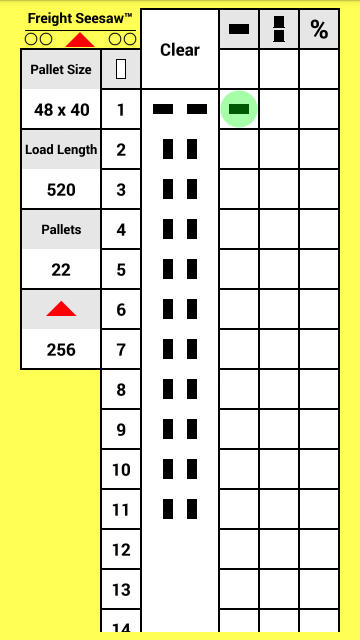

Tapping the sideways button makes a straight row sideways...
screenshot 5
...and a sideways row straight:
screenshot 6

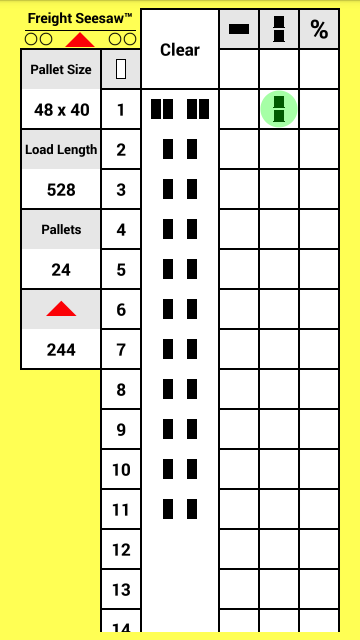

Tapping the stacked button makes an unstacked row stacked:
screenshot 7
Tapping a row with four pallets removes one pallet:
screenshot 8

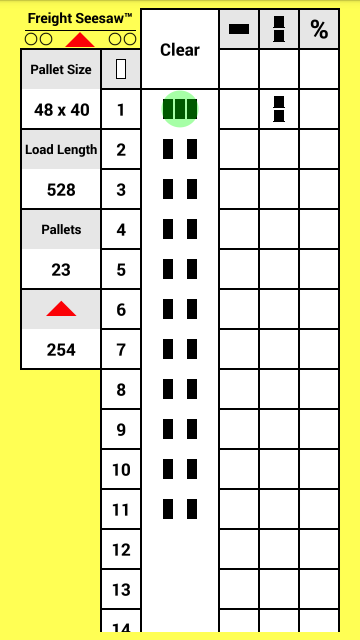

Tapping a row with three pallets adds one pallet:
screenshot 9

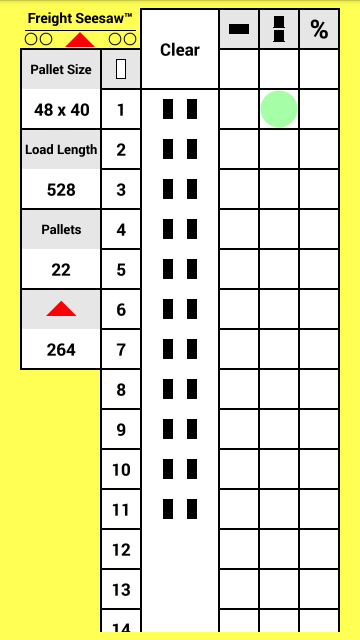

Tapping the stacked button makes a stacked row unstacked:
screenshot 10

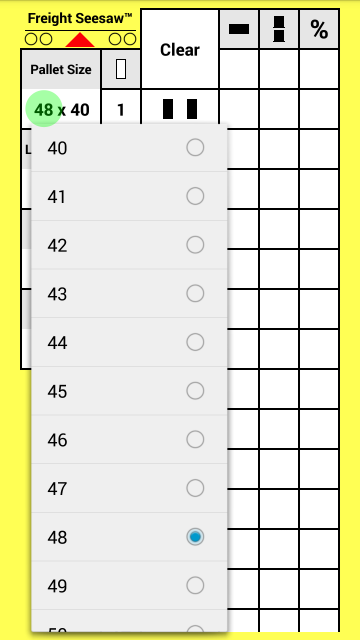

Tapping a pallet dimension opens a popup menu:
screenshot 11
Select a pallet dimension:
screenshot 12

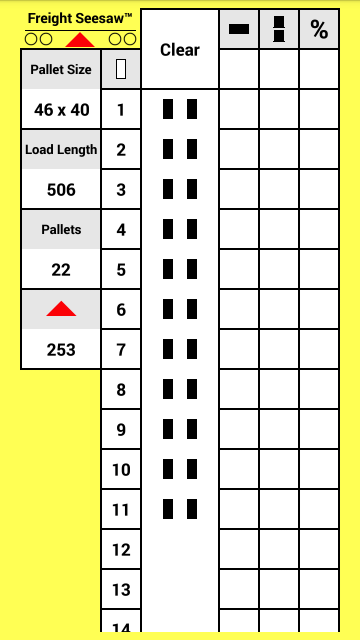

Note that reducing the pallet length by just two inches reduces the balance point of this pattern by eleven inches, roughly a ton of weight difference for a heavy load. This example illustrates why it is so necessary to enter pallet size exactly, to the inch.
screenshot 13

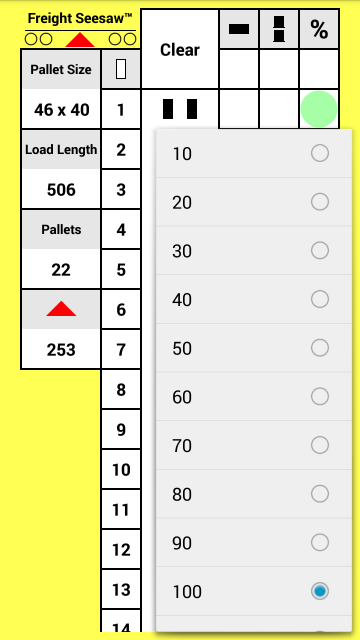

Tapping the percent button opens a popup menu:
screenshot 14

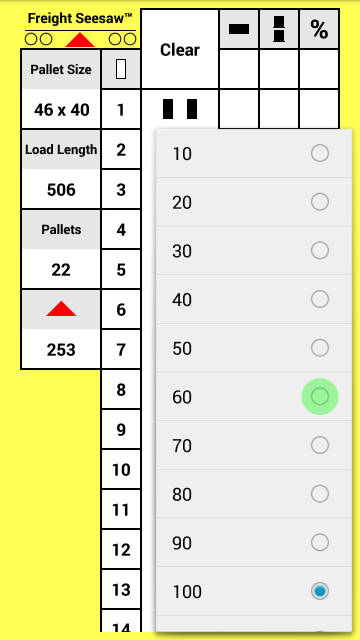

Select a percent:
screenshot 15

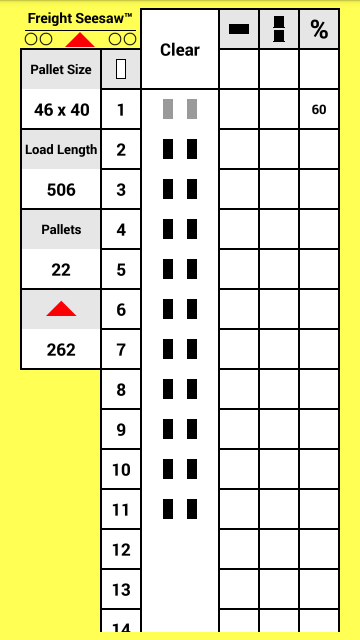

Pallets in the first row of the pattern below weigh 60 percent of the base weight (the base weight is what pallets weigh in a 100‑percent row). Hence, for example, a pattern consisting of eleven rows of 46" by 40" pallets straight-doubled with two 1200‑pound pallets in the first row and two 2000‑pound pallets in every other row has a balance point of 262.
screenshot 16

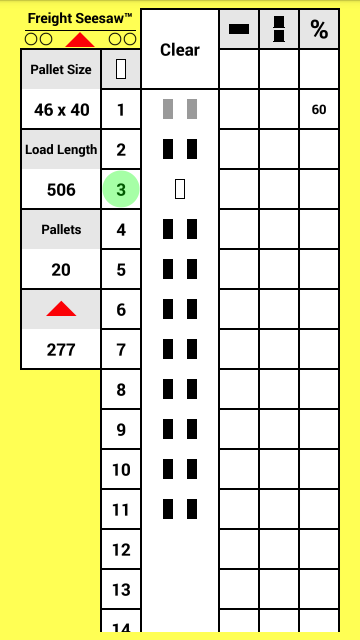

Sometimes empty pallets are used as spacers. To remove all pallets from a row, tap the row number:
screenshot 17
In a row without pallets, tap the row number to add one pallet (or tap within the row to add two pallets):
screenshot 18
Tapping the clear button removes all pallets (the pallet dimensions stay the same):
screenshot 19

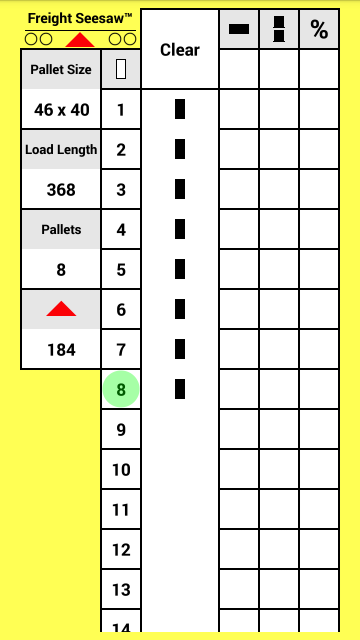

When no pallets are present, tapping a row number creates a pattern with every row straight-singled:
screenshot 20

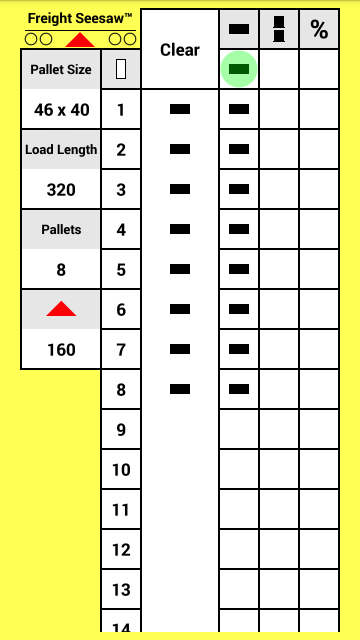

When not all rows are sideways, tapping the all‑sideways button makes them all sideways:
screenshot 21

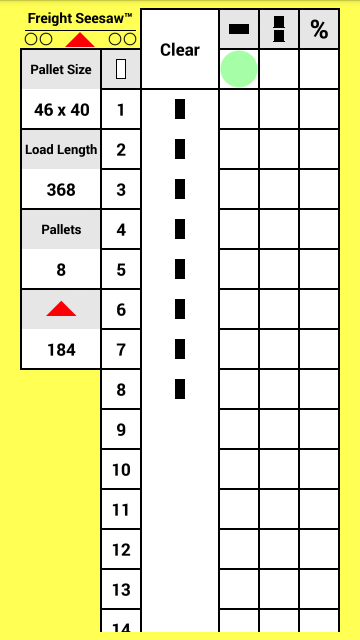

When all rows are sideways, tapping the all‑sideways button makes them all straight. The all‑stacked button works the same way. The all‑percent button sets the percent for all rows at once.
screenshot 22
This concludes the tutorial. Return to top.
